Dynamic 2D Water in Unity

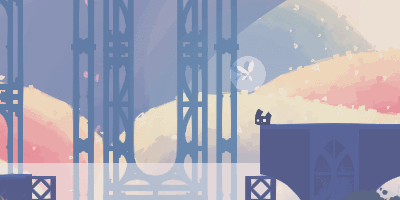

Dynamic 2D Water in Faerie Afterlight

In this tutorial, we are going to simulate dynamic 2D water in Unity with simple physics calculation. This post is actually inspired by this article from tutsplus. The problem with that method is the result is not quite optimized (around 200 draw calls). In this post, we will try to make a more optimized version.

Steps:

• Create an empty Gameobject and attach a new script called DynamicWater2D.cs (or whatever name you want. really.)
• Edit DynamicWater2D.cs and declare all variables we need

System.Serializable]
public struct Bound {
 public float top;
 public float right;
 public float bottom;
 public float left;
}
[Header ("Water Settings")]
public Bound bound;
public int quality;
public Material waterMaterial;
public GameObject splash;
private Vector3[] vertices;
private Mesh mesh;
[Header ("Physics Settings")]
public float springconstant = 0.02f;
public float damping = 0.1f;
public float spread = 0.1f;
public float collisionVelocityFactor = 0.04f;
float[] velocities;
float[] accelerations;
float[] leftDeltas;
float[] rightDeltas;
private float timer;

• This part of the code is totally different from the tutsplus tutorial. We want to make it only 1 mesh rather than so many meshes joined together

private void GenerateMesh () {
 float range = (bound.right - bound.left) / (quality - 1);
 vertices = new Vector3[quality * 2];
// generate vertices
 // top vertices
 for (int i = 0; i < quality; i++) {
  vertices[i] = new Vector3 (bound.left + (i * range), bound.top, 0);
 }
 // bottom vertices
 for (int i = 0; i < quality; i++) {
  vertices[i + quality] = new Vector2 (bound.left + (i * range), bound.bottom);
 }
// generate tris. the algorithm is messed up but works. lol.
 int[] template = new int[6];
 template[0] = quality;
 template[1] = 0;
 template[2] = quality + 1;
 template[3] = 0;
 template[4] = 1;
 template[5] = quality + 1;
int marker = 0;
 int[] tris = new int[((quality - 1) * 2) * 3];
 for (int i = 0; i < tris.Length; i++) {
  tris[i] = template[marker++]++;
  if (marker >= 6) marker = 0;
 }
// generate mesh
 MeshRenderer meshRenderer = gameObject.AddComponent<MeshRenderer> ();
 if (waterMaterial) meshRenderer.sharedMaterial = waterMaterial;
MeshFilter meshFilter = gameObject.AddComponent<MeshFilter> ();
mesh = new Mesh ();
 mesh.vertices = vertices;
 mesh.triangles = tris;
 mesh.RecalculateNormals ();
 mesh.RecalculateBounds ();
// set up mesh
 meshFilter.mesh = mesh;
}

• Don’t forget to add a Collider. This part is also different. We only need 1 big Collider rather than so many colliders placed side by side

private void SetBoxCollider2D () {
 BoxCollider2D col = gameObject.AddComponent<BoxCollider2D> ();
 col.isTrigger = true;
}

• Now the update function. Pretty much the same as the tutorial from tutsplus. Except, I added a timer so it won’t update the physics all the time. It’s just for optimization's sake.

private void Update () {
 // optimization. we don't want to calculate all of this on every update.
 if(timer <= 0) return;
 timer -= Time.deltaTime;
// updating physics
 for (int i = 0; i < quality; i++) {
  float force = springconstant * (vertices[i].y - bound.top) + velocities[i] * damping;
  accelerations[i] = -force;
  vertices[i].y += velocities[i];
  velocities[i] += accelerations[i];
 }
for (int i = 0; i < quality; i++) {
  if (i > 0) {
   leftDeltas[i] = spread * (vertices[i].y - vertices[i - 1].y);
   velocities[i - 1] += leftDeltas[i];
  }
  if (i < quality - 1) {
   rightDeltas[i] = spread * (vertices[i].y - vertices[i + 1].y);
   velocities[i + 1] += rightDeltas[i];
  }
 }
// updating mesh
 mesh.vertices = vertices;
}

• The last piece of code is adding functions to detect collisions with other objects.

private void OnTriggerEnter2D(Collider2D col) {
 Rigidbody2D rb = col.GetComponent<Rigidbody2D>();
 Splash(col, rb.velocity.y * collisionVelocityFactor);
}
public void Splash (Collider2D col, float force) {
 timer = 3f;
 float radius = col.bounds.max.x - col.bounds.min.x;
 Vector2 center = new Vector2(col.bounds.center.x, bound.top) ;
// instantiate splash particle
 GameObject splashGO = Instantiate(splash, new Vector3(center.x, center.y, 0), Quaternion.Euler(0,0,60));
 Destroy(splashGO, 2f);
// applying physics
 for (int i = 0; i < quality; i++) {
  if (PointInsideCircle (vertices[i], center, radius)) {
   velocities[i] = force;
   }
  }
 }
bool PointInsideCircle (Vector2 point, Vector2 center, float radius) {
 return Vector2.Distance (point, center) < radius;
}

• That’s all for our DynamicWater2D.cs. Now, create a new script to test the simulation. We want to randomly spawn boxes that fall into the water.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
namespace ilhamhe {
public class BoxSpawner : MonoBehaviour {
  public GameObject box;
private void Update () {
   if (Input.GetKeyDown (KeyCode.Space)) {
    GameObject go = Instantiate (box, new Vector3 (Random.Range (-7f, 7f), Random.Range (3f, 5f), 0), Quaternion.identity) as GameObject;
    go.transform.localScale = new Vector2(Random.Range(.5f, 1.5f), Random.Range(.5f, 1.5f));
    Destroy(go, 3f);
   }
  }
 }
}

• To test it out, attach BoxSpawner.cs to empty Gameobject and set up some prefabs for our boxes. (Download the project files if you want to see the result)

That’s all for this tutorial. If you have any questions, don’t hesitate to write a comment. And also, you can download the whole project here from Github: Unity 2D Dynamic Water.
